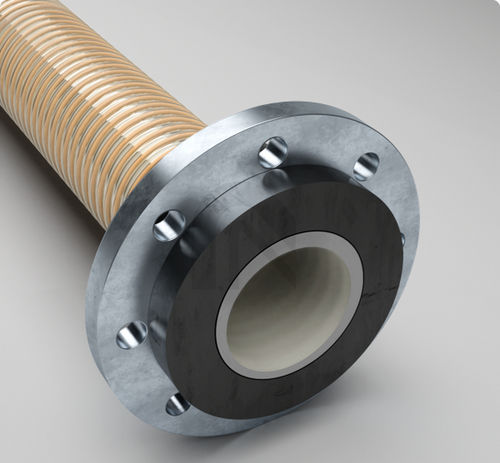

Hose flange Combiflex Cast-on PU Swivel Flange
plasticaluminumthrough-hole

Hose flange - Combiflex Cast-on PU Swivel Flange - Masterflex SE - plastic / aluminum / through-hole
Hose flange - Combiflex Cast-on PU Swivel Flange - Masterflex SE - plastic / aluminum / through-hole
Hose flange - Combiflex Cast-on PU Swivel Flange - Masterflex SE - plastic / aluminum / through-hole - image - 2
Add to favorites
Compare this product


Characteristics

Applications
for hoses
Material
plastic, aluminum
Other characteristics
through-hole, abrasion-resistant
Nominal diameter

Max.: 300 mm
(11.81 in)

Min.: 51 mm
(2.01 in)

Description

Fixed cast-on PU loose flange for all Master-PUR hoses, for counterflanges to DIN 2632 / DIN 2633 / DIN 2673 Description, addition to product name - Fixed cast-on PU loose flange for all Master-PUR hoses, for counterflanges to DIN 2632 / DIN 2633 / DIN 2673 Construction / Material Specification of the connection solution - Flange suitable for counter flange according to DIN 2632/2633, Hole pattern according to DIN 2501, Welding neck according to DIN 2673, Tension-resistant connection, Pressure rating PN 10 for DN 200 or larger, PN 10/16 for all other DNs, gas-tight connection Execution of the sprue / collar - made of abrasion resistant material Material of the sprue / collar - Polyurethane Properties Chemical Properties - microbe-resistant Colour - black Other - Fixed version equipped with digital interface as standard. Compatible with the AMPIUS® app Operating Temperature Temperature Range - -40 to 90 °C short-term maximum temperature - peaks to +125° C Delivery Information Delivery, type of production - Various nominal widths are available ex production, individual nominal widths also ex stock
