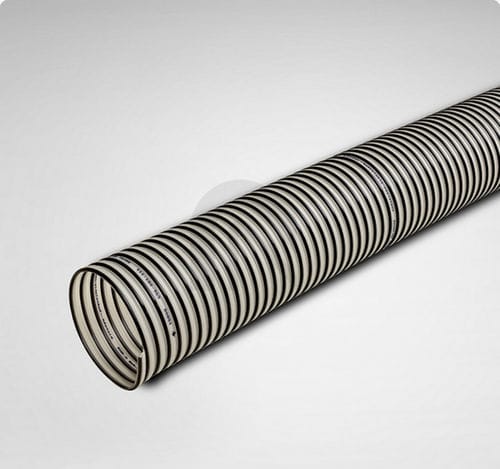

Water hose Master-PUR H Streetmaster Pro
PURsuctiontransport

Water hose - Master-PUR H Streetmaster Pro - Masterflex SE - PUR / suction / transport
Water hose - Master-PUR H Streetmaster Pro - Masterflex SE - PUR / suction / transport
Water hose - Master-PUR H Streetmaster Pro - Masterflex SE - PUR / suction / transport - image - 2
Water hose - Master-PUR H Streetmaster Pro - Masterflex SE - PUR / suction / transport - image - 3
Add to favorites
Compare this product


Characteristics

Use
for water
Material
PUR
Applications
suction, transport, cleaning
Norms
DIN
Other characteristics
flexible, chemical-resistant, oil-resistant, UV-resistant, microbe-resistant, hydrolysis-resistant, ATEX, halogen-free, small bend radius, spiral wire
Inner diameter

Max.: 254 mm
(10 in)

Min.: 140 mm
(5.512 in)

Outer diameter

Max.: 267 mm
(10.512 in)

Min.: 152 mm
(5.984 in)

Pressure

Max.: 0.49 bar
(7.107 psi)

Min.: 0.4 bar
(5.802 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

20 m
(65'07" )

Description

PU Suction & Transport Hose, medium duty, good flexibility, microbe/hydrolysisresistant, exterior folds Type of construction - Profile extruded hose with metal spiral Execution of the wall - Wall thickness between the spirals approx. 1.4 - 1.5 mm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU, with grounding on both sides of the spiral for aspirative and pneumatic conveying of non-flammable dusts and bulk materials in zone 22. For conveying gases and liquids with low conductivity in zone 2., complies with DIN 26057 Type lll Chemical Properties - microbe-resistant, good resistance to chemicals, halogen-free, good UV resistance, good resistance to oil, hydrolysis resistant, good ozone resistance, plasticiser-free Weight - medium heavy Pressure Resistance - moderately pressure resistant Other - high vacuum and good pressure resistance - Application Areas Areas of application - Aerospace technology, Waste disposal & cleaning technology, Textile Customizing Options optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
