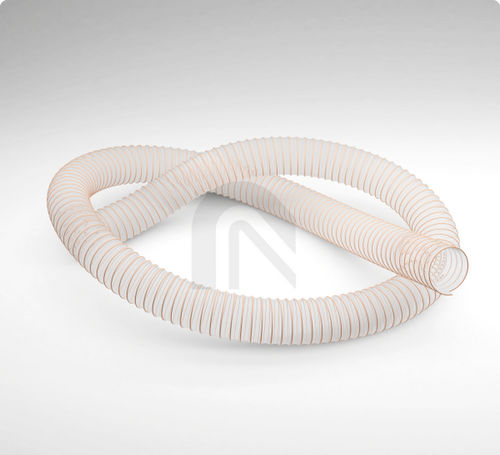

PU Film Hose, PU Foil Hose, light duty, highly flexible and compressible, hardly inflammable acc. to DIN 4102 B1
Construction / Material
Type of construction - Film hose with embedded support coil
Spiral Design - made of reinforced steel wire
Material of the spiral - Spring steel
Execution of the wall - Wall thickness between the spirals approx. 3.5 mm
Specifications of the wall - Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1
Properties
Specifications of the product - Complies with the requirements of the Holz-BG, BGI 739-2
Chemical Properties - halogen-free, good resistance to chemicals, good resistance to petrol, good resistance to oil, plasticiser-free
Mechanical Properties - compressible approx. 1:4, permanently kink-resistant
Pressure Resistance - moderately pressure resistant
Application Areas
Areas of application - Plant & Mechanical Engineering, Wood
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
