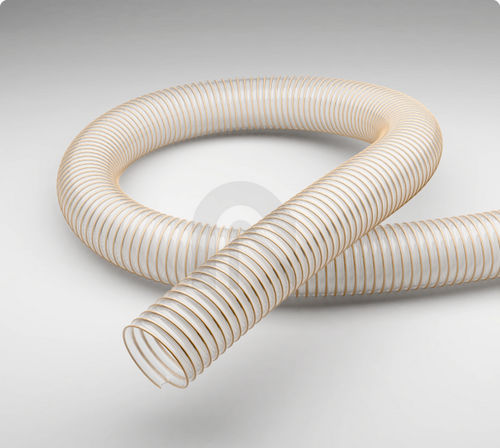

Bulk material hose Master-PUR L Trivolution
for gasfor powdersfor dust

Bulk material hose - Master-PUR L Trivolution - Masterflex SE - for gas / for powders / for dust
Bulk material hose - Master-PUR L Trivolution - Masterflex SE - for gas / for powders / for dust
Bulk material hose - Master-PUR L Trivolution - Masterflex SE - for gas / for powders / for dust - image - 2
Bulk material hose - Master-PUR L Trivolution - Masterflex SE - for gas / for powders / for dust - image - 3
Bulk material hose - Master-PUR L Trivolution - Masterflex SE - for gas / for powders / for dust - image - 4
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for gas, for powders, for dust, for abrasive products
Material
polyester, PU
Applications
suction, transport, conveying, for suction units
Norms
DIN
Other characteristics
UV-resistant, flexible, spiral wire, abrasion-resistant, chemical-resistant, lightweight, oil-resistant, anti-static, microbe-resistant, flame-retardant, halogen-free, small bend radius
Inner diameter

Max.: 500 mm
(19.685 in)

Min.: 25 mm
(0.984 in)

Outer diameter

Max.: 511 mm
(20.118 in)

Min.: 30 mm
(1.181 in)

Pressure

Max.: 3.34 bar
(48.443 psi)

Min.: 0.13 bar
(1.885 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

Type of construction - Profile extruded hose with metal spiral Execution of the wall - made of pure material, made of specified material, Wall thickness between the spirals approx. 0.7 mm Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1 Properties Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Pressure Resistance - moderately pressure resistant Other - Configurable as a hose system with digital interface for compatibility with the AMPIUS® app - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Agriculture, Automotive, Plant & Mechanical Engineering, Robotics & Automation, Industry, Semiconductor Industry, Aerospace technology, Ventilation & air-conditioning, Energy Technology, Bulk & Construction, Sea & rail transport, Wood, Chemistry, Food & Pharma, Waste disposal & cleaning technology, Plastics, Conveying, lifting & feeding technology, Cable manufacturers, Textile, Printing & Paper, Vehicle construction, Metal & Toolmaking
