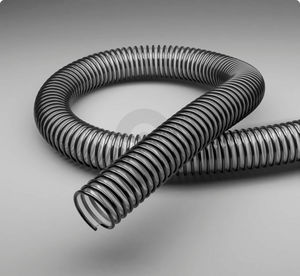

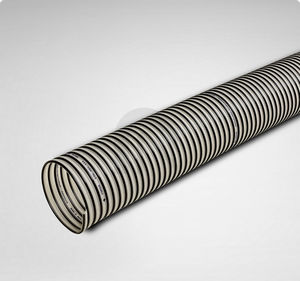

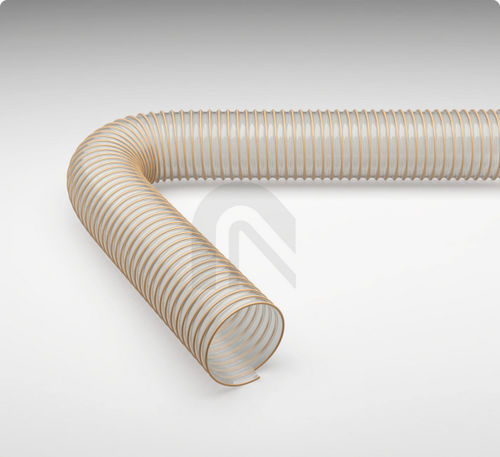

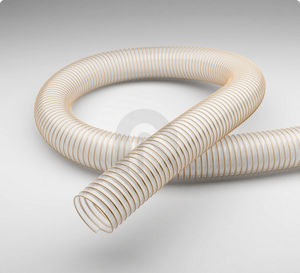

Type of construction - Profile extruded hose with metal spiral
Execution of the wall - made of pure material, made of specified material, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 1.4 mm
Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1
Properties
Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU
Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free
Physical Properties - permanently antistatic
Weight - medium heavy
Pressure Resistance - pressure resistant
Other - high vacuum and good pressure resistance, Configurable as a hose system with digital interface for compatibility with the AMPIUS® app
-
Delivery Information
Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
Application Areas
Areas of application - Agriculture, Automotive, Plant & Mechanical Engineering, Robotics & Automation, Industry, Semiconductor Industry, Aerospace technology, Ventilation & air-conditioning, Energy Technology, Bulk & Construction, Wood, Chemistry, Food & Pharma, Waste disposal & cleaning technology, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Metal & Toolmaking
