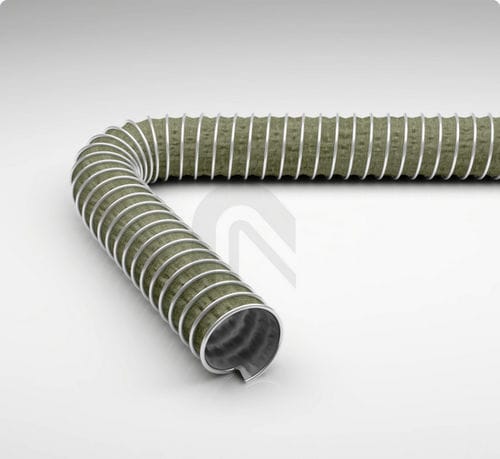

Gas hose Master-Clip ISO-CAR

for exhaust gasfor hot airfabric

Medium and high temperature hose for temperatures up to +300°C, two layers Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - double-layered Design of the inner layer - heat-resistant impregnation Material of the inner layer - glass fabric Execution of the external layer - Coating with heat stabilisers Material of the outer layer - High temperature fabric Properties Chemical Properties - good resistance to chemicals, weather-resistant Mechanical Properties - compressible approx. 1:4 Weight - medium heavy Pressure Resistance - moderately pressure resistant Colour - silver-grey inside, green-grey outside Other - good vacuum resistance short-term maximum temperature - peaks to +300° C flue gas temperature (peaks to +350° C), for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Aerospace technology, Ventilation & air-conditioning, Sea & rail transport, Vehicle construction Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
