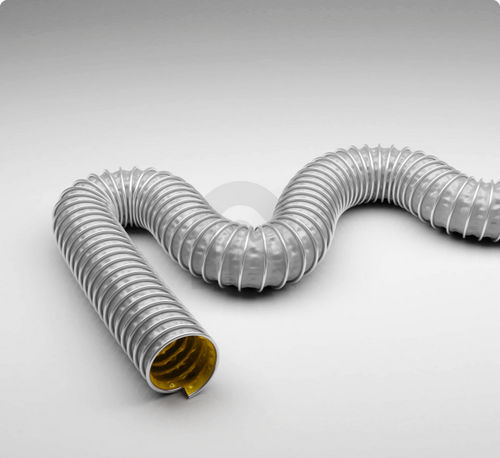

Medium and high temperature hose for temperatures up to +400°C, excellent chemical resistance
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - one side laminated, Lamination of KAPTON®
Material of the wall - glass fabric
Properties
Chemical Properties - very good resistance to chemicals
Pressure Resistance - moderately pressure resistant
Colour - outside white, inside yellow-gold
Other - resistance to chemicals is comparable to Master-Clip PTFE tubing, but over a much wider temperature range, good vacuum resistance, high gas tightness in the vacuum and low pressure range
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Automotive, Industry, Chemistry
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
