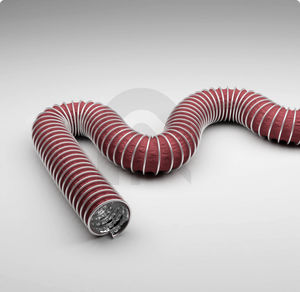

Exhaust gas hose Master-Clip HT 450
fabricfiberglasshigh-temperature

Exhaust gas hose - Master-Clip HT 450 - Masterflex SE - fabric / fiberglass / high-temperature
Exhaust gas hose - Master-Clip HT 450 - Masterflex SE - fabric / fiberglass / high-temperature
Exhaust gas hose - Master-Clip HT 450 - Masterflex SE - fabric / fiberglass / high-temperature - image - 2
Exhaust gas hose - Master-Clip HT 450 - Masterflex SE - fabric / fiberglass / high-temperature - image - 3
Add to favorites
Compare this product


Characteristics

Use
for exhaust gas
Material
fabric, fiberglass
Applications
high-temperature, for automotive applications, exhaust, for suction units, low-pressure, for aerospace applications
Other characteristics
flexible, abrasion-resistant, lightweight, microbe-resistant, hydrolysis-resistant, double-layer, small bend radius, double-walled, spiral wire
Inner diameter

Max.: 900 mm
(35.433 in)

Min.: 50 mm
(1.969 in)

Pressure

Max.: 0.35 bar
(5.076 psi)

Min.: 0.01 bar
(0.145 psi)

Temperature

Max.: 450 °C
(842 °F)

Min.: -20 °C
(-4 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Exhaust gas hose for exhaust gas temperatures up to +450°C, two layers Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Specifications of the wall - flame retardant according to DIN EN 13501-1 (class B1, s2: medium smoke development; d0: no burning droplet/fall within 600 seconds) Design of the inner layer - reinforced by interwoven VA wire, heat-resistant impregnation Material of the inner layer - glass fabric Execution of the external layer - Coating with heat stabilisers Material of the outer layer - High temperature fabric Properties Chemical Properties - good resistance to chemicals, good UV resistance, good ozone resistance, weather-resistant Weight - medium heavy Pressure Resistance - moderately pressure resistant Colour - silver grey Other - increased vacuum resistance due to woven-in reinforcing components short-term maximum temperature - peaks to +450° C exhaust gas temperature (peaks to +500° C), for proper use exhaust gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Aerospace technology, Ventilation & air-conditioning, Sea & rail transport, Food & Pharma, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
