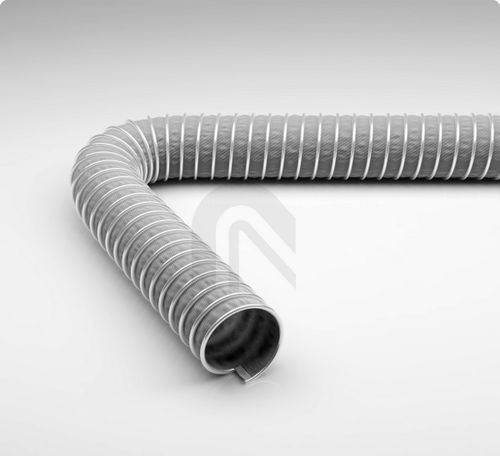

Exhaust gas hose Master-Clip HT 650
fabrichigh-temperatureexhaust

Exhaust gas hose - Master-Clip HT 650 - Masterflex SE - fabric / high-temperature / exhaust
Exhaust gas hose - Master-Clip HT 650 - Masterflex SE - fabric / high-temperature / exhaust
Exhaust gas hose - Master-Clip HT 650 - Masterflex SE - fabric / high-temperature / exhaust - image - 2
Exhaust gas hose - Master-Clip HT 650 - Masterflex SE - fabric / high-temperature / exhaust - image - 3
Add to favorites
Compare this product


Characteristics

Use
for exhaust gas
Material
fabric
Applications
high-temperature, exhaust, medium-temperature
Other characteristics
hydrolysis-resistant, flexible, microbe-resistant, heat/cold-resistant, vibration-resistant, reinforced, flameproof, small bend radius, double-walled, spiral wire, silicone-free
Inner diameter

Min.: 50 mm
(1.969 in)

Max.: 900 mm
(35.433 in)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 650 °C
(1,202 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Medium- and high temperature hose for temperatures up to +650°C Type of construction - Spiral hose with clamping profile Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Design of the inner layer - reinforced by interwoven VA wire Material of the inner layer - High-temperature fabric Execution of the external layer - Coating with heat stabilisers Material of the outer layer - High temperature fabric Properties Chemical Properties - silicone-free Weight - medium heavy Pressure Resistance - moderately pressure resistant Colour - silver grey Other - increased vacuum resistance due to woven-in reinforcing components Operating Temperature short-term maximum temperature - peaks to +450° C flue gas temperature (peaks to +500° C), for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Aerospace technology, Ventilation & air-conditioning, Printing & Paper, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral

Catalogs

No catalogs are available for this product.

See all of Masterflex SE‘s catalogs
