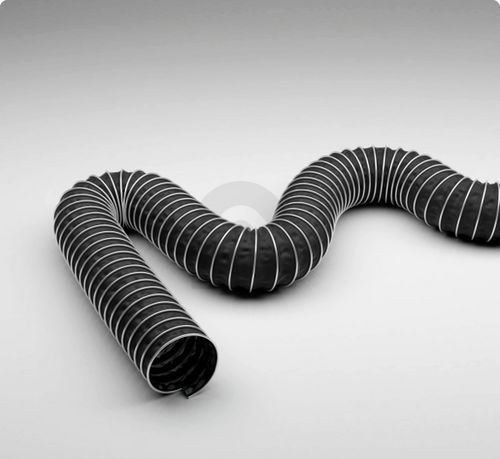

Exhaust gas hose Master-Clip NEOPREN
for hot airneoprene®fabric

Exhaust gas hose - Master-Clip NEOPREN - Masterflex SE - for hot air / neoprene® / fabric
Exhaust gas hose - Master-Clip NEOPREN - Masterflex SE - for hot air / neoprene® / fabric
Exhaust gas hose - Master-Clip NEOPREN - Masterflex SE - for hot air / neoprene® / fabric - image - 2
Exhaust gas hose - Master-Clip NEOPREN - Masterflex SE - for hot air / neoprene® / fabric - image - 3
Add to favorites
Compare this product


Characteristics

Use
for exhaust gas, for hot air
Material
neoprene®, fabric, polyester
Applications
air conditioning, high-temperature, suction, construction, for chemical applications, for the automotive industry, for suction units, for railway application, low-pressure, for ventilation, for the plastics industry, medium-temperature
Other characteristics
flexible, chemical-resistant, lightweight, microbe-resistant, hydrolysis-resistant, heat/cold-resistant, vibration-resistant, small bend radius, spiral wire
Inner diameter

Min.: 38 mm
(1.496 in)

Max.: 900 mm
(35.433 in)

Pressure

Min.: 0.016 bar
(0.232 psi)

Max.: 0.94 bar
(13.634 psi)

Temperature

Min.: -35 °C
(-31 °F)

Max.: 125 °C
(257 °F)

Delivered length

Min.: 3 m
(9'10" )

Max.: 25 m
(82'00" )

Description

Medium and high temperature hose for temperatures up to +125°C Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - coated, Coating of neoprene Material of the wall - Polyester fabric Properties Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - black short-term maximum temperature - peaks to +150° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Plant & Mechanical Engineering, Ventilation & air-conditioning, Sea & rail transport, Chemistry, Plastics, Vehicle construction Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
