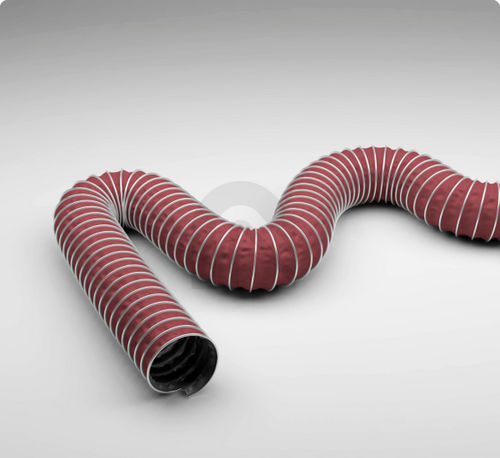

Chemical product hose Master-Clip VITON®fabricpolyesterViton®
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- fabric, polyester, Viton®
- Applications
- high-temperature, for chemical applications, conveying, for suction units, low-pressure, for the plastics industry, medium temperature, for the steel industry
- Other characteristics
- flexible, chemical-resistant, lightweight, UV-resistant, microbe-resistant, hydrolysis-resistant, heat/cold-resistant, vibration-resistant, small bend radius, spiral wire
- Inner diameter
Min.: 38 mm
(1.496 in)Max.: 900 mm
(35.433 in)- Pressure
Min.: 0.016 bar
(0.232 psi)Max.: 0.94 bar
(13.634 psi)- Temperature
Min.: -25 °C
(-13 °F)Max.: 210 °C
(410 °F)- Delivered length
Min.: 3 m
(9'10" )Max.: 25 m
(82'00" )
Description
Medium and high temperature hose for temperatures up to +210°C
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - coated, Coating in Viton®
Material of the wall - Polyester fabric
Properties
Chemical Properties - very good resistance to chemicals, good UV resistance, good ozone resistance
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - outside red, inside black
short-term maximum temperature - peaks to +240° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Industry, Semiconductor Industry, Chemistry, Surface Technology, Plastics, Conveying, lifting & feeding technology, Metal & Toolmaking
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
