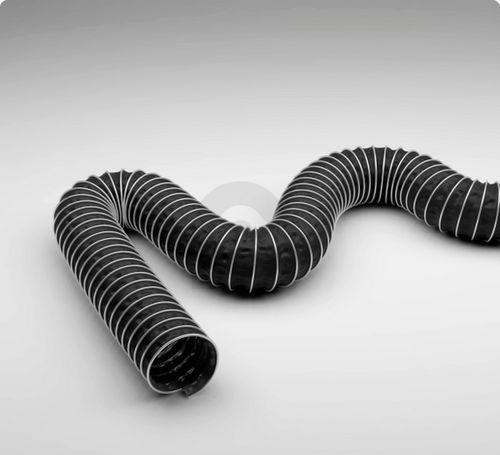

Chemical product hose Master-Clip VITON® EL

for corrosive fluidsfabricpolyester

Suction & Blower hose made from VITON-coated Polyester fabric, for corrosive media up to +210 °C, electroconductive Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - made of electrically conductive material, coated, Coating in Viton® Specifications of the wall - Surface resistance RO < 10⁴ Ohm Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - very good resistance to chemicals, good UV resistance, good ozone resistance Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - black short-term maximum temperature - peaks to +240° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Ventilation & air-conditioning, Chemistry, Surface Technology Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
