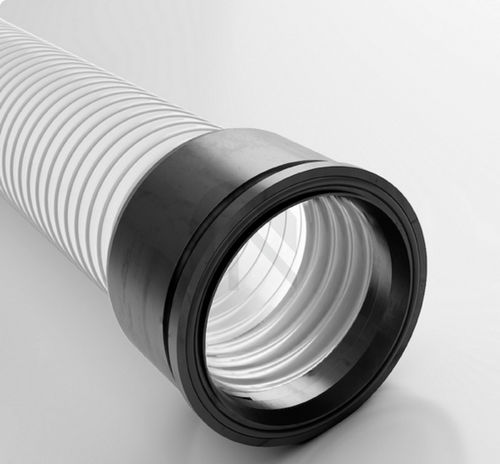

Hose flange Combiflex

plasticabrasion-resistantfixed

fixed quick connector system for all Master-PUR L, Master-PUR H and Master-PUR HX hoses, following DIN 3016 Description, addition to product name - fixed quick connector system for all Master-PUR L, Master-PUR H and Master-PUR HX hoses, following DIN 3016 Construction / Material Specification of the connection solution - Conical flange coupling system suitable for spigots according to DIN 3016, Connection option without cross-section narrowing Execution of the sprue / collar - made of highly abrasion-resistant material Material of the sprue / collar - Polyurethane Design of the flange - Designed as a tapered flange Properties Chemical Properties - microbe-resistant Colour - black Other - easy to install due to the use of quick-release clamps, Dissipation of electrostatic charge due to integrated earthing plate, Fixed version equipped with digital interface as standard. Compatible with the AMPIUS® app Operating Temperature Temperature Range - -40 to 90 °C short-term maximum temperature - peaks to +125° C Delivery Information Delivery, type of production - Various nominal widths are available ex production, individual nominal widths also ex stock Customizing Options optional item modification (on request) - in permanently mounted design for liquid-tight, tension-resistant connections, other nominal widths, other colours
