Air conditioning hose Master-Clip VINYLfor gasPVCsuction
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- PVC
- Applications
- suction, for chemical applications, air conditioning, exhaust, for suction units, low-pressure, for ventilation, for the plastics industry
- Other characteristics
- flexible, abrasion-resistant, lightweight, microbe-resistant, hydrolysis-resistant, rugged, flameproof, small bend radius, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 0.63 bar
(9.137 psi)Min.: 0.01 bar
(0.145 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description

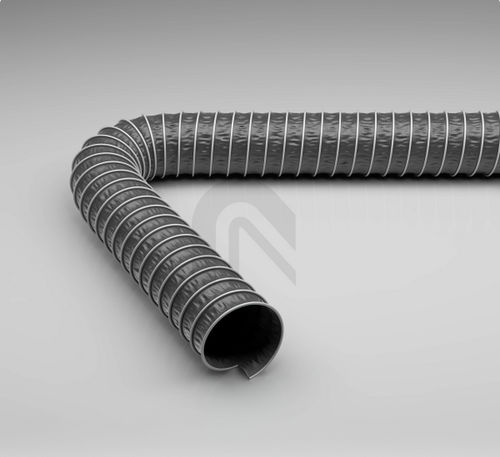

Suction & Blower Hose made from PVC foil/film
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - made of pure material, single layer executed
Properties
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - grey
-
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Plant & Mechanical Engineering, Ventilation & air-conditioning, Chemistry, Plastics
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
