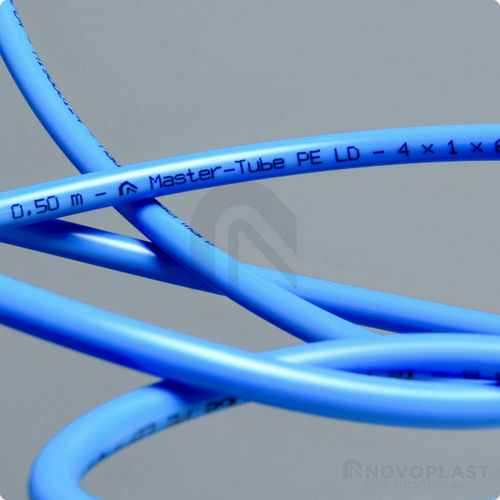

Pneumatic tube Master-Tube
polyethylene (PE)for automotive applicationsFDA

Pneumatic tube - Master-Tube - Masterflex SE - polyethylene (PE) / for automotive applications / FDA
Pneumatic tube - Master-Tube - Masterflex SE - polyethylene (PE) / for automotive applications / FDA
Pneumatic tube - Master-Tube - Masterflex SE - polyethylene (PE) / for automotive applications / FDA - image - 2
Add to favorites
Compare this product


Characteristics

Use
pneumatic
Material
polyethylene (PE)
Applications
for automotive applications, FDA
Other characteristics
chemical-resistant, UV-resistant, electrically-conductive, hydrolysis-resistant, microbe-resistant
Inner diameter

Min.: 1 mm
(0.039 in)

Max.: 41 mm
(1.614 in)

Outer diameter

Min.: 2 mm
(0.079 in)

Max.: 42.6 mm
(1.677 in)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 70 °C
(158 °F)

Description

Polyethylene-based hose with dielectric properties Description, addition to product name - Polyethylene-based hose with dielectric properties Construction / Material Execution of the wall - made of electrically conductive material, made of a material with dielectric properties Specifications of the wall - approved for direct food contact according to EU Directive 1935/2004, 10/2011 and its latest amending Directives, Material complies with food regulations FDA 21 CFR § 177.2600 - 21 CFR § 178.2010 Properties Specifications of the product - manufactured with calibrated outer diameter Chemical Properties - good resistance to chemicals, good resistance to solvents, good UV resistance, halogen-free, hydrolysis resistant, microbe-resistant, plasticiser-free, free from paint wetting impairment substances (LABS) Physical Properties - low water absorption Application Areas Areas of application - Agriculture, Automotive, Plant & Mechanical Engineering, Robotics & Automation, Industry, Aerospace technology, Bulk & Construction, Sea & rail transport, Chemistry, Surface Technology, Food & Pharma, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other colours, Rolls, cut-to-size sections
