Steam hose Master-SANTO L
TPVthermoplasticsuction

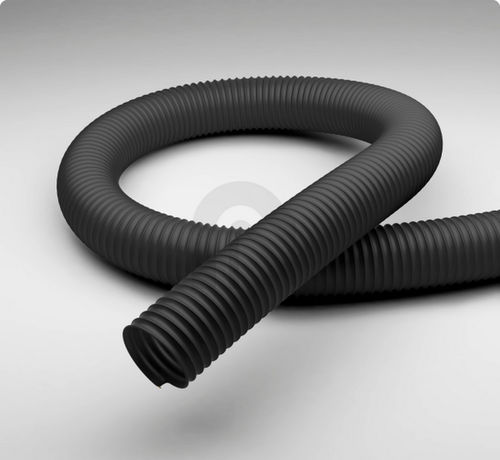

Steam hose - Master-SANTO L - Masterflex SE - TPV / thermoplastic / suction
Steam hose - Master-SANTO L - Masterflex SE - TPV / thermoplastic / suction
Steam hose - Master-SANTO L - Masterflex SE - TPV / thermoplastic / suction - image - 2
Steam hose - Master-SANTO L - Masterflex SE - TPV / thermoplastic / suction - image - 3
Steam hose - Master-SANTO L - Masterflex SE - TPV / thermoplastic / suction - image - 4
Add to favorites
Compare this product


Characteristics

Use
for steam
Material
TPV, thermoplastic
Applications
suction, transport
Other characteristics
lightweight, UV-resistant, with smooth inner surface, microbe-resistant, hydrolysis-resistant, heat/cold-resistant, gas-tight, small bend radius, spiral wire
Inner diameter

Min.: 25 mm
(0.984 in)

Max.: 500 mm
(19.685 in)

Outer diameter

Min.: 31 mm
(1.22 in)

Max.: 511 mm
(20.118 in)

Pressure

Min.: 0.04 bar
(0.58 psi)

Max.: 1.06 bar
(15.374 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 130 °C
(266 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

TPV transport and suction hose, lightweight, for increased temperatures Type of construction - Profile extruded hose with metal spiral Execution of the wall - Wall thickness between the spirals approx. 0.7 mm Material of the wall - thermoplastic vulcanizate (TPV) Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - good resistance to chemicals, halogen-free, good UV resistance, good resistance to acids, good resistance to alkalis, good resistance to solvent vapours, good ozone resistance, plasticiser-free Pressure Resistance - moderately pressure resistant Colour - black short-term maximum temperature - peaks to +150° C Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Semiconductor Industry, Ventilation & air-conditioning, Energy Technology, Bulk & Construction, Sea & rail transport, Wood, Chemistry, Waste disposal & cleaning technology, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint, flame retardant
