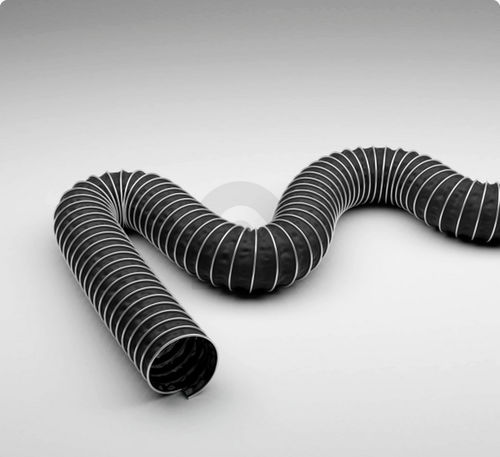

Gas hose Master-Clip NEOPREN polyestersuctionhigh-temperature
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- polyester
- Applications
- suction, high-temperature, for the chemical industry, air conditioning, exhaust, low-pressure, medium-temperature
- Other characteristics
- flexible, chemical-resistant, lightweight, microbe-resistant, hydrolysis-resistant, vibration-resistant, small bend radius, neoprene-coated, spiral
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 38 mm
(1.496 in)- Pressure
Max.: 0.94 bar
(13.634 psi)Min.: 0.016 bar
(0.232 psi)- Temperature
Max.: 125 °C
(257 °F)Min.: -35 °C
(-31 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description
Medium and high temperature hose for temperatures up to +125°C
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - coated, Coating of neoprene
Properties
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - black
short-term maximum temperature - peaks to +150° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Plant & Mechanical Engineering, Ventilation & air-conditioning, Sea & rail transport, Chemistry, Plastics, Vehicle construction
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
Catalogs
No catalogs are available for this product.
See all of Masterflex SE‘s catalogsOther Masterflex SE products
Temperature Resistant Hoses up to +1100 °C
