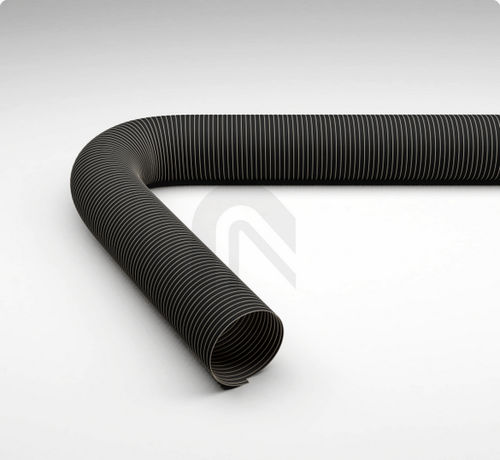

Chemical product hose Master-NEO 1 fiberglasshigh-temperaturemedium-temperature
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- fiberglass
- Applications
- high-temperature, for the chemical industry, medium-temperature
- Norms
- DIN
- Other characteristics
- flexible, chemical-resistant, with smooth inner surface, microbe-resistant, hydrolysis-resistant, vulcanized, small bend radius, neoprene-coated, spiral wire
- Inner diameter
Min.: 13 mm
(0.512 in)Max.: 305 mm
(12.008 in)- Pressure
Min.: 0.02 bar
(0.29 psi)Max.: 0.51 bar
(7.397 psi)- Temperature
Min.: -35 °C
(-31 °F)Max.: 135 °C
(275 °F)- Delivered length
4 m
(13'01" )
Description
Medium and high temperature hose for temperatures up to +135 °C
Type of construction - single or multi-layer spiral hose made of vulcanized fabric strips
Execution of the wall - coated, Coating of neoprene, single layer executed
Material of the wall - glass fabric
Design of the cord - designed as cord
Material of the cord - Glass fibre yarn
Properties
Specifications of the product - Approved to DIN 75200 or FMVSS 302 for use in transport vehicles
Mechanical Properties - kink-proof
Pressure Resistance - moderately pressure resistant
Colour - black
Delivery Information
Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
Application Areas
Areas of application - Automotive, Plant & Mechanical Engineering, Industry, Aerospace technology, Ventilation & air-conditioning, Bulk & Construction, Sea & rail transport, Wood, Chemistry, Plastics, Conveying, lifting & feeding technology, Printing & Paper, Vehicle construction, Metal & Toolmaking
