Chemical product hose Master-Clip VITON®
fabricpolyesterViton®

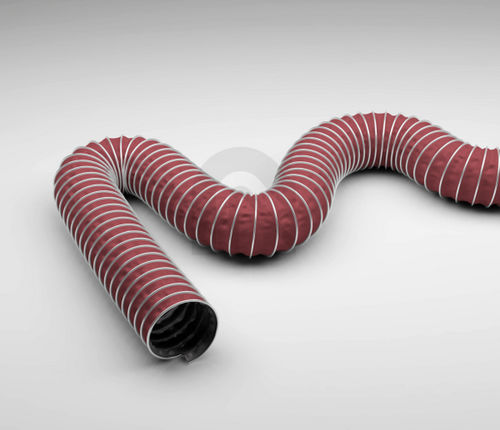

Chemical product hose - Master-Clip VITON®  - Masterflex SE - fabric / polyester / Viton®
Chemical product hose - Master-Clip VITON®  - Masterflex SE - fabric / polyester / Viton®
Chemical product hose - Master-Clip VITON®  - Masterflex SE - fabric / polyester / Viton® - image - 2
Chemical product hose - Master-Clip VITON®  - Masterflex SE - fabric / polyester / Viton® - image - 3
Add to favorites
Compare this product


Characteristics

Use
for chemical products
Material
fabric, polyester, Viton®
Applications
suction, high-temperature, for chemical applications, medium temperature
Other characteristics
flexible, chemical-resistant, lightweight, UV-resistant, microbe-resistant, hydrolysis-resistant, coated, spiral
Inner diameter

Max.: 900 mm
(35.433 in)

Min.: 39 mm
(1.535 in)

Pressure

Max.: 0.94 bar
(13.634 psi)

Min.: 0.016 bar
(0.232 psi)

Temperature

Max.: 210 °C
(410 °F)

Min.: -25 °C
(-13 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Medium and high temperature hose for temperatures up to +210°C Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - coated, Coating in Viton® Material of the wall - Polyester fabric Properties Chemical Properties - very good resistance to chemicals, good UV resistance, good ozone resistance Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - outside red, inside black short-term maximum temperature - peaks to +240° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Industry, Semiconductor Industry, Chemistry, Surface Technology, Plastics, Conveying, lifting & feeding technology, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
