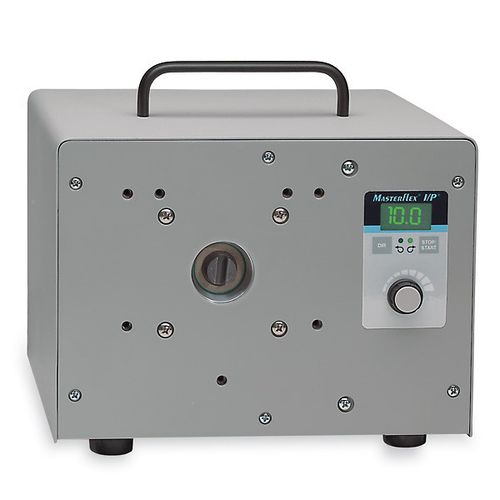

AC servo-drive EW-77410-10

brushlesscontrolcompact

Flow range: 0.2 to 26 LPM (depends on drive rpm and tubing size; achieve 26 LPM by stacking two I/P Easy-Load® pump heads) 1/3-hp brushless motor handles challenging applications with minimal maintenance Non-chip epoxy-coated, IP55-rated steel enclosure protects against moisture, chemicals, and dust Compact drives are light enough to carry with one hand, but powerful enough to drive two pump heads Flow: 0.2 to 19 LPM (0.06 to 5.0 GPM); flow rate depends on motor rpm and tubing size. Speed control via three-turn potentiometer for quick, easy adjustments Start/stop/reverse via sealed keypad Digital display shows motor speed, from 5 to 100% Flow: 0.2 to 19 LPM (0.06 to 5.0 GPM); flow rate depends on motor rpm and tubing size. Three-turn speed control offers precision and repeatability—LED display shows percent speed with 1% resolution 1/3-hp brushless motor handles challenging applications with minimal maintenance Non-chip epoxy-coated, IP55-rated steel and aluminum enclosure protects against moisture, chemicals, and dust Compact drives are light enough to carry with one hand, but powerful enough to drive two pump heads
