Hot water hose CALORE synthetic rubberEPDMfiberglass
Add to favorites
Compare this product
Characteristics
- Use
- for hot water
- Material
- synthetic rubber, EPDM, fiberglass
- Other characteristics
- heat-resistant, reinforced
- Inner diameter
Min.: 10 mm
(0.394 in)Max.: 102 mm
(4.016 in)- Outer diameter
Min.: 20 mm
(0.787 in)Max.: 122 mm
(4.803 in)- Pressure
Min.: 0 Pa
(0 psi)Max.: 2,000,000 Pa
(290.075 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 530 °C
(986 °F)
Description

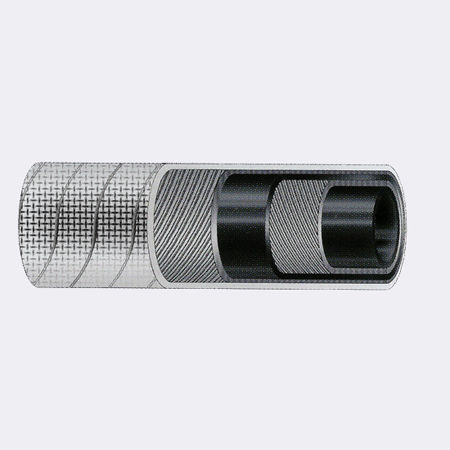

Structure: substrate synthetic rubber EPDM heat-resistant black synthetic textile reinforcements, EPDM synthetic cover in heat-resistant and aging-coated fiberglass vulcanized by heat-resistant to radiation.
Available in 10 bar (30 bar burst) and in version 20 bar (60 bar burst). Even with white underlay.
Suitable pass tube hot water cooling in steel plants, steel mills, foundries, glass industry, wherever they are in need of tubes protected from splashes of hot metal. Cover in durable fiberglass radiant heat up to + 530 ° C.
Working temperature: -40 ° C + 130 °. Rolls of 40-61 meters.
