Compressed air hose
for corrosive fluidssynthetic rubbernatural rubber

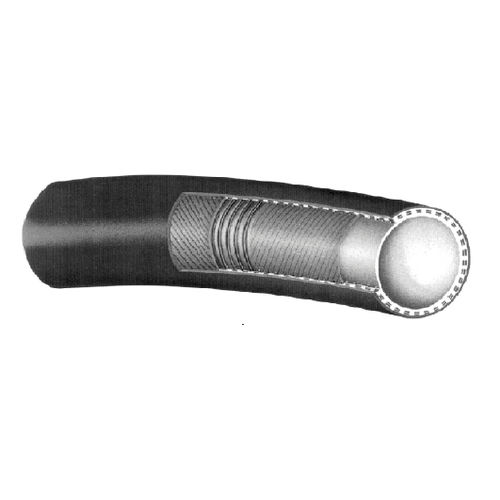

Compressed air hose - MASTERTUBI spa - for corrosive fluids / synthetic rubber / natural rubber
Compressed air hose - MASTERTUBI spa - for corrosive fluids / synthetic rubber / natural rubber
Add to favorites
Compare this product


Characteristics

Use
for compressed air, for corrosive fluids
Material
synthetic rubber, natural rubber
Applications
FDA
Other characteristics
abrasion-resistant, weather-resistant, smooth, anti-static, reinforced, corrugated, spiral wire
Inner diameter

Min.: 50 mm
(1.969 in)

Max.: 100 mm
(3.937 in)

Outer diameter

Min.: 64 mm
(2.52 in)

Max.: 118 mm
(4.646 in)

Pressure

24 bar
(348.091 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 60 °C
(140 °F)

Description

Rubber hose suitable for pneumatic conveyance pressure of powders and granules for plastic molding, flour, animal feed, cereals. Inner tube in natural rubber white (NR), ANTIABRASIVE, NON-TOXIC, mirror smooth complies with FDA and BgVV. In conformity with the Italian following the Ministerial Decree 21.03.1973 as amended. Structure consisting of textile reinforcements entered high tenacity, steel spiral Armonico, conductive copper cable for electrical leakage. Black synthetic rubber cover, anti-abrasive and anti-static (resistivity less than a ohms) 1×10 -6 , resistant to ozone and weathering. Surface cloth impression. Straight form, semi-wavy, wavy, corrugated. Working temperature: -30 ° + 60 ° C. Safety factor in pressure:> 3 times the operating pressure, about 24 bar. On request customized with logos and corporate colors.
