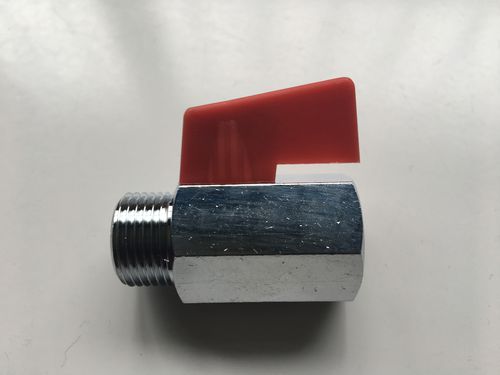

Ball valve 541 leverfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Media
- for water, for oil, for compressed air
- Body
- threaded, miniature, steel
- DN
Max.: 0.75 in
Min.: 0.125 in
- Pressure
15 bar
(217.6 psi)- Temperature
Max.: 220 °C
(428 °F)Min.: -15 °C
(5 °F)
Description
Ball valve for all hydraulic and pneumatic.
Ideal for water, oil, compressed air.
Operating Temperature: -15 ° to 220 ° C / 0 ° 150 ° C in the absence of steam -15 ° 60 ° C for gas
Threaded port ISO228 DIN259 BS2779
Description: steel screw to tropical handle lever in galvanized and painted steel, O-ring NBR-70 SH / A, control rod CW 614 N OT, OT sleeve CW617 Ni plated, ball OT CW617N chrome plated, PTFE virgin , body in OT CW617N nickel.
