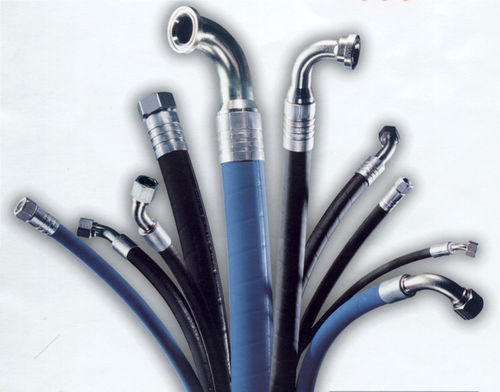

Hydraulic hose TUBO SAE 100R2ATrubberhigh-pressureoil-resistant
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber
- Applications
- high-pressure
- Other characteristics
- oil-resistant, smooth, wire-reinforced, wire-braided
- Inner diameter
Max.: 25 mm
(0.984 in)Min.: 6 mm
(0.236 in)- Outer diameter
Max.: 36.8 mm
(1.449 in)Min.: 14.7 mm
(0.579 in)- Pressure
Max.: 400 bar
(5,801.51 psi)Min.: 165 bar
(2,393.123 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
Rubber hose with double wire braid embedded steel reinforcement, smooth interior and exterior cloth impression.
Underlayer resistant rubber hydraulic oils, minerals and organic polyglycol base, water mixtures of oil emulsified water.
Cover synthetic rubber resistant to weathering and abrasion.
Using temperature. -40 ° + 135 ° C, maximum temperature 150 ° C. discontinuous
Application: hydraulic systems with high pressure hydraulic fittings and ferrules pressed.
