Compressed air hose EXTRAFLEX C 98elastomerpolyurethanelow-temperature
Add to favorites
Compare this product
Characteristics
- Use
- for compressed air
- Material
- elastomer, polyurethane
- Applications
- low-temperature, for chemical applications
- Other characteristics
- abrasion-resistant
- Inner diameter
Min.: 2 mm
(0.079 in)Max.: 9 mm
(0.354 in)- Outer diameter
Min.: 4 mm
(0.157 in)Max.: 12 mm
(0.472 in)- Pressure
Min.: 7 bar
(101.526 psi)Max.: 22 bar
(319.083 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 60 °C
(140 °F)
Description
Polyurethane elastomer of chemical origin ETHER base, excellent flexibility at low temperatures, limited deformation, excellent hydrolytic stability, resistance to hydrocarbons, excellent abrasion resistance.
E ‘used for compressed air as insulator, as a garnish in hydraulic systems.
Hardness 52 shored. Suitable for use with quick connect couplings.

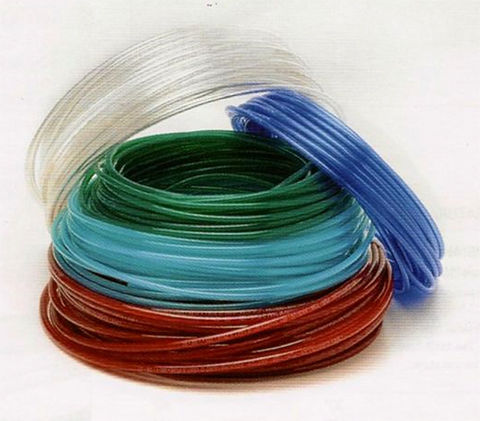

Operating temperature: -40 ° C + 60 ° C. Colours: clear, blue, black, red, yellow, green, orange, gray.
Rolls: 100 meters Also available Multitube.
