Air heater

ductfinnedelectric

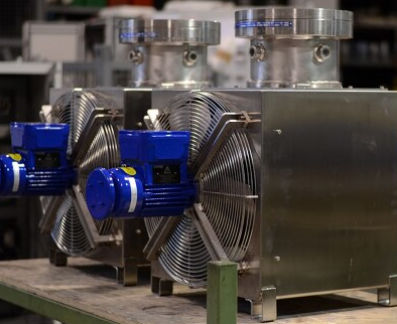

The UNIT HEATER (Type 80÷700) are electrical resistance heaters coupled to a ventilation fan that designed to tailor the customer’s specific needs. The main application are winterization of technical room container or control panel. We can install from 0,5kW to 240kW with maximum overall dimensions up to 1800×1800 of flow section area. The heating elements are finned to increase the heat exchange. However, if the heated fluid contains particles which could clog the fins, the duct heater is manufactured using smooth heating elements. Are available a complete stainless steel execution on request. Where necessary i.e. marine/offshore applications we are able to make special marine painting on every exposed SURFACE.​ FEATURES: •EXPLOSION PROOF UNIT HEATER certified to: ATEX , IECex, CSA, INMETRO, ATEX, EAC TR-CU standards. • Certified under EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31 Execution IIB+H2 / Zone 1-2/ Ex-d/Ex-e SIMILAR PRODUCTS: •UNIT HEATER SERIES MW-UH-EX •EXPLOSION PROOF DUCT HEATERS EX •ELECTRICT DUCTS HEATERS
