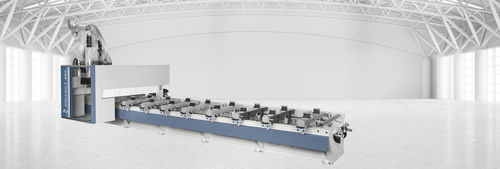

5-axis CNC machining center Project 485 verticalHSK F6322 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK F63
- Number of tool stations
- 22 tools
- Applications
- for panels, for furniture, for windows and doors
- Other characteristics
- multi-spindle
- X travel
3,220 mm, 5,060 mm
(126.77 in, 199.21 in)- Y travel
2,020 mm
(79.53 in)- Z travel
200 mm
(7.87 in)- Power
Max.: 16 kW
(21.75 hp)Min.: 0 kW
(0 hp)
Description
The "cantilever" structure allows loading of rather wide panels. The use of birotative operatin unite gives Project 485 a great flexibility without the need to use expensive aggregates, as for example in the case of cuts on inclined planes.
Project 485 is the 5-axis machining center for panels, doors and windows processing.
The "cantilever" structure allows loading of rather wide panels. The use of birotative operatin unite gives Project 485 a great flexibility without the need to use expensive aggregates, as for example in the case of cuts on inclined planes.
