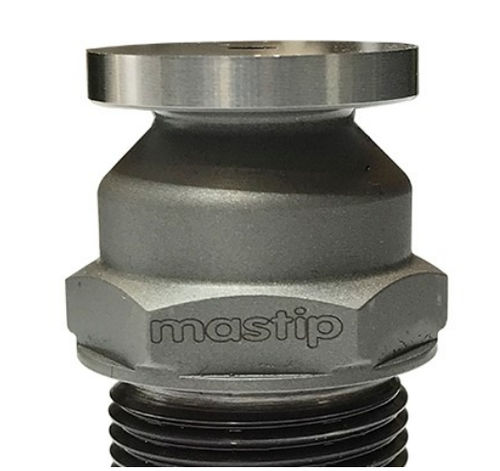

Stainless steel nut YV

The YV Tipless Nut is engineered to simplify the needs of Valve Gate moulding requirements. The YV valve nut functions without the need for a high-conductivity tip, providing open flow processing, minimising melt shear, lowering the overall pressure drop through the gate and providing an optimum repeatable processing window with a cosmetic gate. YV valve nuts are ideal for processing residence sensitive polymers or fast colour changes due to the continual movement of all polymer in the gate, shot after shot. Applications: • Valve Gate applications • Ideal for fast colour change • Excellent solution for residence sensitive polymers Features: • Open flow Internal nut profiles to suit wide range of materials and temperature requirements • Minimises melt shear • No high-conductivity tip required • Tipless nut ensures no stagnant polymer • Provides a repeatable moulding window • Lowers the overall pressure drop through the gate • Guided cylindrical valve pin for minimal gate wear (YV2B) • Nuts manufactured from 420 corrosion resistant stainless steel Nut Options X-Range YV nuts have 3 available options, YV1B, YV1S and YV2B. Gate Diameter X-Range YV nuts are stocked with standard gate diameters according to the nozzle series, nut style and filled or unfilled material.
