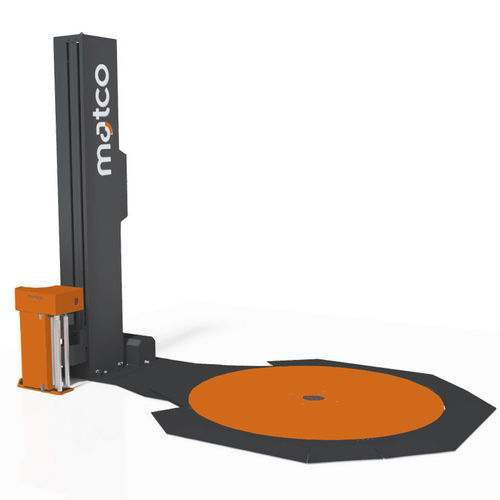

Turntable wrapping machine FlatLine
semi-automaticpallet

Turntable wrapping machine - FlatLine - Matco International - semi-automatic / pallet
Turntable wrapping machine - FlatLine - Matco International - semi-automatic / pallet
Add to favorites
Compare this product


Characteristics

Type
turntable
Operating mode
semi-automatic
Product applications
pallet
Maximum wrapping height

2,300 mm
(90.55 in)

Maximum pallet length

1,200 mm
(47.24 in)

Maximum pallet width

1,000 mm
(39.37 in)

Maximum pallet weight

1,200 kg
(2,645.55 lb)

Table diameter

1,650 mm
(64.96 in)

Rotational speed

Min.: 3 rpm
(19 rad.min-1)

Max.: 12 rpm
(75 rad.min-1)

Voltage

230 V

Capacity

30 p/h

Description

New in our assortment is the Matco FlatLine, a super low turntable of only 23mm. A development we are very proud of! This FlatLine is available on the completely renewed Matco A-Series, the widely praised A100/ A300 and A600 turntable wrappers. The FlatLine has a turntable diameter of 1650 mm, which allows for the wrapping of Euro and Industrial pallets with a height up to standard 2300 mm and a maximum load of 1200 kg. Our super low turntable of only 23 mm is easy to load with a manual or electric pallet truck. Because the FlatLine does not require a long ramp of 1500 mm, but a short ramp of only 235 mm, you save a lot of space in your warehouse or production facility. Besides the single ramp, we also offer a ramp that can be placed 270 ̊ around the FlatLine. This allows the wrapper to be loaded from all sides. The wrapping of pallets has never been easier! Do you want a handy semi-automatic pallet wrapper on which you can drive pallets with a pallet truck? Then choose the flexibility, safety, load security and top quality of the Matco FlatLine. This version with a super low rotating table can be used with the A100, A300 and A600. So, it is perfectly suited to Euro pallets/EUR/industry/Chep and Block pallets. Always flexible and easy to drive on Whichever FlatLine version you choose, you will always get a semi-automatic pallet wrapper that is flexible in use. You can simply move it from one place to another when needed, as it is not nailed to the floor. Once it is in position, your staff can drive in with the hand or electric pallet truck. Extremely safe
