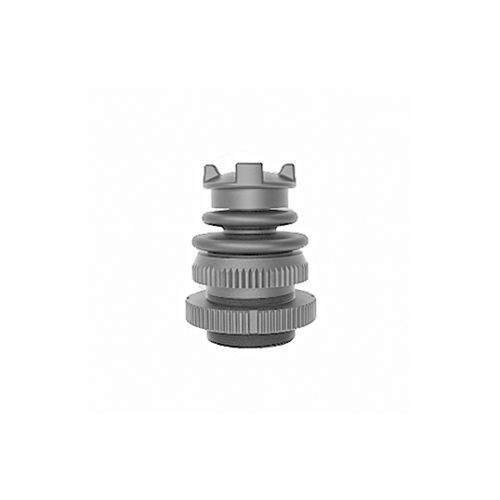

Hall effect joystick MKF-JS09-S

analog4-wayfingertip

Function: The MKF-JS09-S Hall control lever is a mini control type lever with dual axis output. Using 5V+ power supply, output an analog signal proportional to the rotation angle. 1 Mechanical specifications 1.1 Left image size: millimeters 1.2 Main component material: aluminum alloy 1.3 Weight: Less than 25 grams 1.4 Operating force: 0 to 2.5 Newton; Maximum allowable operating force: 5 Newtons 1.5 Control range (X, Y axis): From the center position in any direction: 18 ° ± 1 °. 2 Electrical specifications 2.1 Input voltage: 5VDC; Current: ≤ 50mA; 2.2 Signal output (X, Y axis): Voltage: 0-5VDC ± 10%; Zero position voltage: 2.5VDC ± 0.25VDC; Maximum output voltage: 4.5VDC~5.0VDC; Minimum output voltage: 0VDC~0.5VDC; Output signal impedance 1K Ω. 2.3 Cable 28 AWG 3. Environmental parameters 4.1 Working temperature: -25 ℃ to+60 ℃ 4.2 Storage temperature: -30 ℃ to+65 ℃ 4.3 Waterproof and dustproof level: IP67 (below the installation plate
