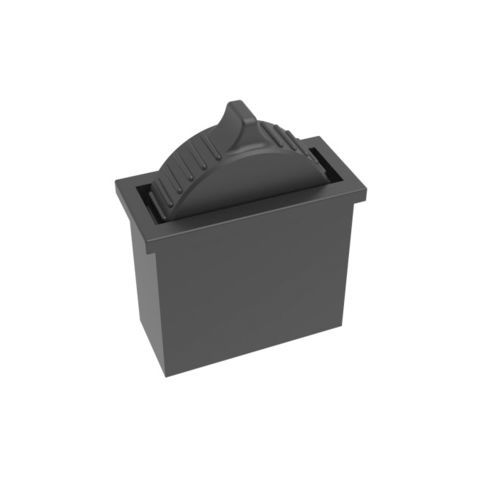

Thumbwheel mini joystick MKF-TS19

Hall effectanalogsingle-axis

This product adopts high-quality industrial grade ABS injection molding, non-contact Hall sensor thumb operation design, firm material, lightweight appearance, easy and flexible operation, long service life, and good protective performance. It achieves precise linear signal output through thumb operation. 1 Mechanical specifications 1.1 Main component materials: ABS 1.2 Weight: 30 grams (maximum) 1.3 Operating force: 0 to 3 N; Maximum allowable operating force: 35 N 1.4 Control range (self reset): From the center position in any direction: 25 ° ± 2 °. 2 Electrical specifications 2.1 Input voltage:+5VDC; Current: ≤ 50mA; 2.2 Signal output: Voltage: 0-5VDC ± 5%; Maximum output voltage 4.8VDC (minimum); Minimum output voltage 0.2VDC (maximum); Output signal impedance 1K Ω. 3 Environmental parameters 3.1 Working temperature: -40 ℃ to+70 ℃ 3.2 Storage temperature: -45 ℃ to+75 ℃ 3.3 Special temperature: can be customized according to requirements
