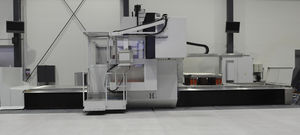

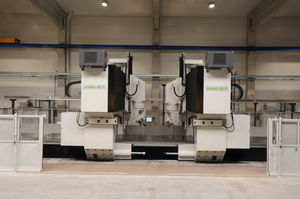

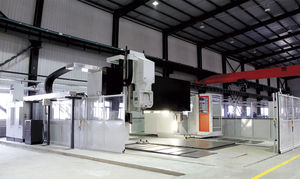

3-axis CNC machining center 40PB

universalgantryHSK-A 100

The gantry machining center MATEC 40PB is a floor-running variant of the MATEC 40P. The machine is equipped with a 2-axis swivel head with taper SK 50/ HSK-A 100. The high-performance motor spindle with 33 kW and constant speed 8,000 rpm provides for the optimal chipping of all materials in its class. The floor-running gantry and a flush embedded machine table ensure easy loading by lift trucks and cranes, and permit the machining of heavy parts. All sides of the mounting table are easily accessible. The MATEC 40PB is optionally available as MATEC 40PBU, equipped with a universal milling head. This universal milling head increases the working area in Z by 250 mm and allows a 360° all-over machining of parts. Technical Information Torque max. 530|296 Nm Benefits Compact gantry center with minimum floor space in relation to the available working space dimension Stagnant machine table on hall floor level and moving gantry enable highest workpiece weights. All axis movements are made by the machining tool executed. Different workpiece weights have no influence on machine dynamics and precision The dynamic 2-axis fork head ensures strong construction at maximum feed force and at the same time guarantees the expected surface qualities on the workpiece. Both heads have direct measuring systems and selectable clamping. A special feature of all MATEC gantry machines is the enormous rigidity of the individual axes. Specifically, the design and stability of the Y and Z axis are essential for precision and surface quality on the workpiece.
