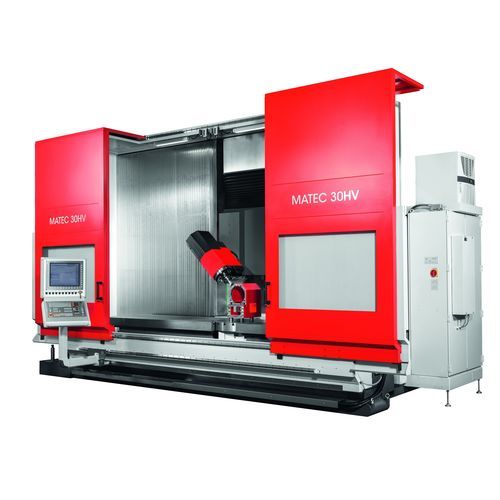

5-axis CNC machining center 30HVC
universalwith rotary tableSK40

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
universal
Structure
with rotary table
Spindle mount
SK40, HSK-63
Number of tool stations
60 tools, 48 tools, 80 tools
Other characteristics
high-performance, high-precision
X travel

1,300 mm, 1,500 mm, 3,000 mm, 4,000 mm
(51.18 in, 59.06 in, 118.11 in, 157.48 in)

Y travel

600 mm, 825 mm, 1,125 mm
(23.62 in, 32.48 in, 44.29 in)

Z travel

800 mm, 1,100 mm, 1,300 mm
(31.5 in, 43.31 in, 51.18 in)

Rotational speed

9,000 rpm
(56,549 rad.min-1)

Power

11 kW, 16 kW, 19 kW
(14.96 hp, 21.75 hp, 25.83 hp)

Work feed X-axis

30,000 mm/min, 48,000 mm/min
(20 in/s, 31 in/s)

Work feed Y-axis

30,000 mm/min, 48,000 mm/min
(20 in/s, 31 in/s)

Work feed Z-axis

30,000 mm/min, 48,000 mm/min
(20 in/s, 31 in/s)

Table load capacity

500 kg, 1,000 kg, 1,500 kg
(1,102 lb, 2,205 lb, 3,307 lb)

Tool weight (max)

10 kg
(22 lb)

Description

The standard machine for complex 5-side machining Short delivery times Standard equipment in all machines 1-Axis CNC swivel head, infinitely variable Heidenhain TNC 640 control Tool holder HSK63 DIN 69893 Tool magazine 48 places CNC rotary table Ø 630 / 800 / 1,150 mm Work area full enclosure with roof Direct path measuring system in X-, Y- and Z-axis Chip conveyor Additional options Siemens 840D sl Tool holder SK40 DIN 69871 Tool magazine extension to 280 places High-pressure coolant unit Rotary tables mounted for shaft machining Work area partition wall Motor spindle Torque max: 115 Nm Swivel head Swivel angle: ± 105° degrees infinitely variable Direct path measuring system: ± 3“ Clamping forces: 2,400 Nm unclamped 4,200 Nm clamped Integrated CNC rotary table For Y-axis 600 mm: Ø 630 mm For Y-axis 825 mm: Ø 800 mm For Y-axis 1,125 mm: Ø 1,150 mm
