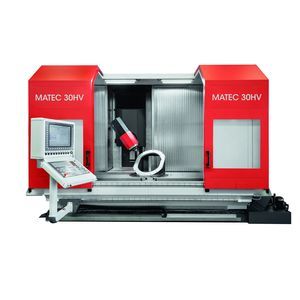

3-axis CNC machining center HV series
verticalSK50HSK-100

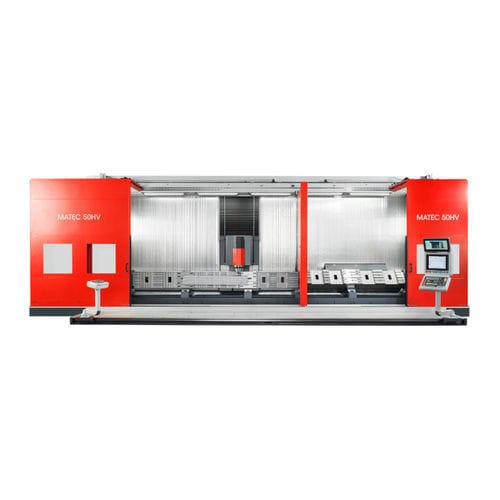

3-axis CNC machining center - HV series - matec Maschinenbau - vertical / SK50 / HSK-100
3-axis CNC machining center - HV series - matec Maschinenbau - vertical / SK50 / HSK-100
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
SK50, HSK-100
Number of tool stations
40 tools, 60 tools
Other characteristics
high-performance, high-power
X travel

Max.: 12,500 mm
(492.13 in)

Min.: 1,500 mm
(59.06 in)

Y travel

825 mm, 1,025 mm, 1,125 mm, 1,225 mm, 1,630 mm
(32.48 in, 40.35 in, 44.29 in, 48.23 in, 64.17 in)

Z travel

800 mm, 1,100 mm, 1,300 mm, 1,350 mm, 1,850 mm
(31.5 in, 43.31 in, 51.18 in, 53.15 in, 72.83 in)

Rotational speed

Min.: 8,000 rpm
(50,265 rad.min-1)

Max.: 15,000 rpm
(94,248 rad.min-1)

Power

Min.: 37 kW
(50.31 hp)

Max.: 96 kW
(130.52 hp)

Work feed X-axis

30,000 mm/min, 48,000 mm/min
(20 in/s, 31 in/s)

Work feed Y-axis

30,000 mm/min, 48,000 mm/min
(20 in/s, 31 in/s)

Work feed Z-axis

30,000 mm/min, 48,000 mm/min
(20 in/s, 31 in/s)

Table load capacity

1,000 kg, 1,500 kg, 2,500 kg
(2,205 lb, 3,307 lb, 5,512 lb)

Tool weight (max)

20 kg
(44.1 lb)

Positioning accuracy

0.01 mm
(0.00039 in)

Repeatability

0.003 mm
(0.00012 in)

Description

1-Axis CNC swivel head, infinitely variable CNC control Heidenhain TNC 640 Torque: max. 306 Nm Axis drives with ball screw drive Roller linear guides in all axes Direct path measuring systems Standard machine table with T-slots Full work area enclosure with roof Chip conveyor Coolant unit Options for the basic machine Swivel head Dynamic CNC swivel head with direct drive Motor spindle Higher power motor spindle ― Torque: up to max. 690 Nm Drive system X-axis with linear drive X-axis with rack and pinion drive
