3-axis CNC machining center
verticalHSK F63HSK-63

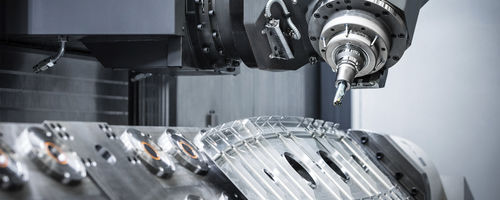

3-axis CNC machining center - matec Maschinenbau - vertical / HSK F63 / HSK-63
3-axis CNC machining center - matec Maschinenbau - vertical / HSK F63 / HSK-63
3-axis CNC machining center - matec Maschinenbau - vertical / HSK F63 / HSK-63 - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
HSK F63, HSK-63
Number of tool stations
60 tools
Applications
for the aerospace industry
Other characteristics
high-performance
X travel

Max.: 8,300 mm
(326.77 in)

Min.: 2,000 mm
(78.74 in)

Y travel

930 mm, 1,630 mm
(36.61 in, 64.17 in)

Z travel

950 mm, 1,650 mm
(37.4 in, 64.96 in)

Rotational speed

30,000 rpm
(188,496 rad.min-1)

Power

120 kW, 159 kW
(163.15 hp, 216.18 hp)

Description

Maximum chip removal volume, high surface quality, exact contour accuracy. Highest economic effi ciency! Technical data Dynamic package rack and pinion drive 48 m/min. Acceleration 5m/sec2 Machining capacity in aluminium approx. 9,000 cm3/min. High-performance coolant system, temperature-controlled, 650 l/min. Workpiece cleaning with air curtain Oil mist extraction system 2,300 m3/h
