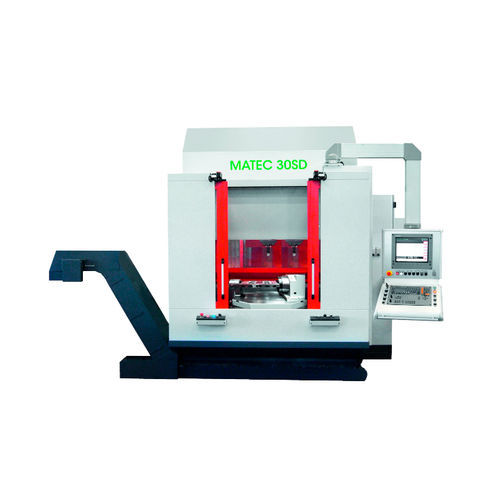

3-axis CNC machining center 30SD verticalwith rotary table2-spindle
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- Number of spindles
- 2-spindle
- Spindle mount
- SK40, HSK-63
- Number of tool stations
- 36 tools
- X travel
450 mm
(17.72 in)- Y travel
480 mm
(18.9 in)- Z travel
500 mm
(19.69 in)- Rotational speed
9,000 rpm
(56,549 rad.min-1)- Power
Max.: 36 kW
(48.95 hp)Min.: 11 kW
(14.96 hp)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
400 kg
(882 lb)- Tool weight (max)
3 kg, 10 kg
(6.6 lb, 22 lb)
Description
Reduction of the piece time by 50% Tool change directly above the workpiece Pallet change in approx. 4 seconds Ideal concept for manual and automatic loading
Additional rotary tables or swivel bridges with counter bearing enable multi-sided machining.
Rotary distributors for clamping hydraulics, pneumatics or vacuum integrated in the swivel table enable complex fixtures with multiple clamping or different clamping sequences.
