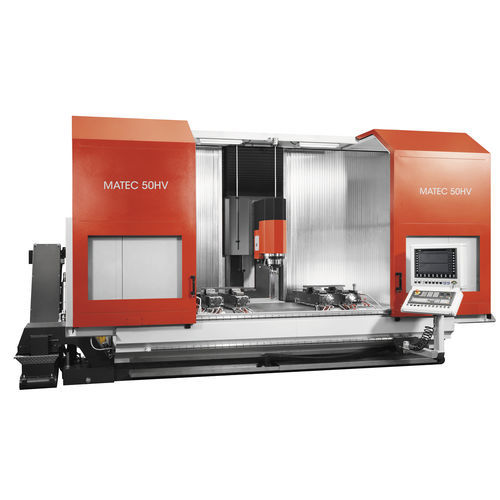

3-axis CNC machining center 50HV

verticalrotating tableHSK-100

NC swivel head, continuously swivelling by +/- 105° - with face plate Ø 630 mm I 400 1/min - with face plate Ø 1.450 mm with worm drive, incl. special covering for swivel circle 1,500 mm, integrated into the machine table Clamping pallet for rotary table 38 zero-point clamping systems Unilock ESM 138, integrated into the machine table 16 zero-point clamping systems in face plate Ø 1,450 mm 4 zero-point clamping systems in face plate Ø 630 mm Electronic handwheel Working area, fully enclosed, with roof Internal coolant supply 20 bar / tank capacity 900 l Lateral loading door for long parts 3D radio touch probe New parts of the machine: All drive motors Ball screw in X-, Y- and Z-axis Additional control panel Linear roller guides in X- , Y- and Z-axis Internal coolant supply pumps Hydraulic unit Central lubrication Coolant unit for control cabinet Motor spindle (exchange spindle) All cables and hoses All parts, having being defective, upon inspection
