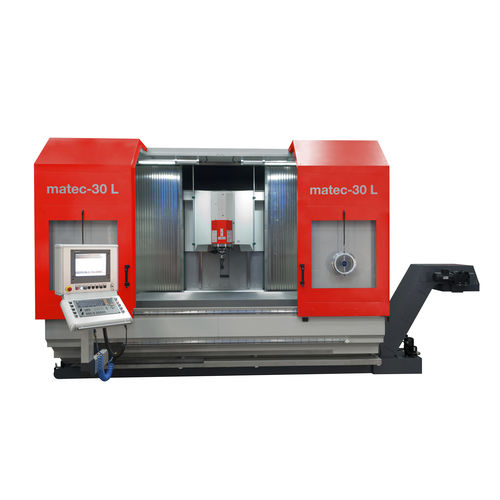

3-axis CNC machining center 30L

verticalrotating tableHSK A-63

The machining center matec-30 L has been developed for single-part and series production. Whether used for twin table machining with a rotary table or tail stock, multiple clamping or single-part machining of voluminous parts, this machine group covers nearly all fields of application. Stability, precision and high speed are characteristics of these machines. On the basis of a great variety of traverse paths in X-axis up to 12,000 mm, Y-axis up to 1,400 mm and Z-axis up to 900 mm we provide the best solution for the customer’s machining task. Technical Information Torque max. 191 Nm Benefits • Highest precision and rigidity due to wide guide distances in all linear axes. • Constant distance from spindle center to Z axis guide in every position of the Y axis. As a result, no tilting and no increase in vibration when extending the Y-axis • Adaptation of workspaces according to production task and application. • User-related machine table variations e.g. with swivel table or linear sets for automatic conversion. • Tool change system (double gripper, shuttle, shuttle with round tool storage, side pick-up magazines) • Tool lengths up to 450 mm
