Chamber furnace F-14

gasvacuumgraphite

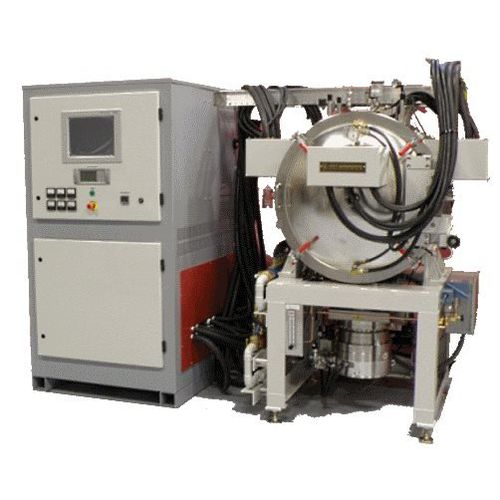

F-14 Front Loading Furnace Our F-14 front loading furnace has a heating area of 14” cubed (356 mm W x H x D) and is also available with a 25” deep heating area (356 mm W x 356 mm H X 635 mm D) to double the heated volume. This model is well suited for large volume or high capacity work loads in production environments. This furnace has both a front and rear door for easy maintenance access. Four side heaters are standard with optional top and bottom heaters for additional heating power and better uniformity. With specifications similar to our smaller units such as rated temperatures up to 2500°C for select materials, various vacuum systems and gas systems for oxidizing, reducing and inert environments, and numerous options, this furnace can be configured to specific process needs. General Specifications: Hot zone area: 14” (356 mm) W x H x D or 14”W x 14”D x 25”D (356 mm W X 356 mm D x 635 mm D) Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tantalum, 2100°C max. Tungsten, 2500°C max. Graphite, 2500°C max. +/- 10°C temperature gradient across zone Rough or high-vacuum systems. Gas systems: inert, oxidizing or reducing. Numerous chamber ports for installing options.
