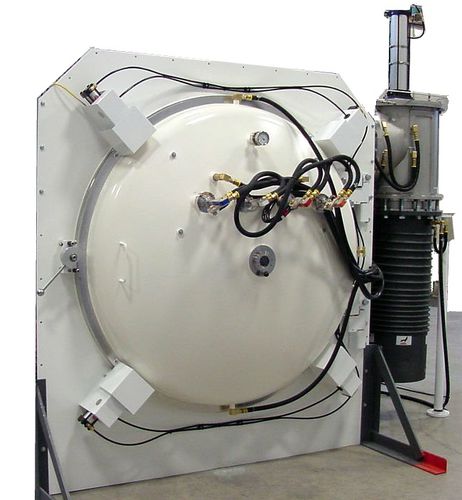

Chamber furnace F-26

gasvacuuminert gas

F-26 Front Loading Furnace Designed to accommodate large loads, our Model F-26 is our largest front loading furnace. With a hot zone of over 8 cubic feet (226 liters), maximum temperatures of 2500°C and available HMI process automation, it is geared toward production. The heating area measures 26” W x H x D (660 mm W x H x D). Four side heaters are standard with optional top and bottom heaters for additional heating power and better uniformity. This model has a load capacity of up to 1000 lbs (454 kg) and is available with a 16” high vacuum pumping system for handling out-gassing and a gas recirculator for rapid cool-down. Choose from our list of options to create the configuration to suit your process needs. General Specifications: Hot zone area: 26” (660 mm) W x H x D Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten/Tantalum, 2200°C max. Tantalum, 2100°C max. Graphite, 2500°C max. +/- 10°C temperature gradient across usable zone Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
