Chamber furnace T-6

vacuuminert gasgraphite

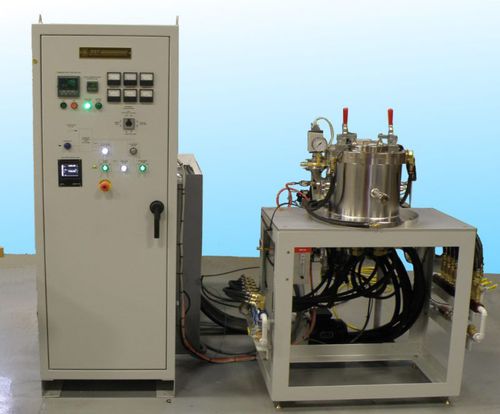

T-6 Top Loading Furnace Mid sized top loading furnac with a 6” diameter x 8” high (152 mm x 203 mm) hot zone. Maximum temperature of 3000°C with Graphite or Tungsten hot zone. T-6 through T-12 feature removable power feed through ring to bring power into the hot zone. This makes for easier servicing and supports the larger heating elements. Work samples are placed on a hearth plate inside the hot zone. General Specifications: Hot zone size: 6” dia. x 8” high (152mm dia. X 203mm high). Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten, 3000°C max. Graphite, 3000°C max. +/- 10°C temperature gradient across zone Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
