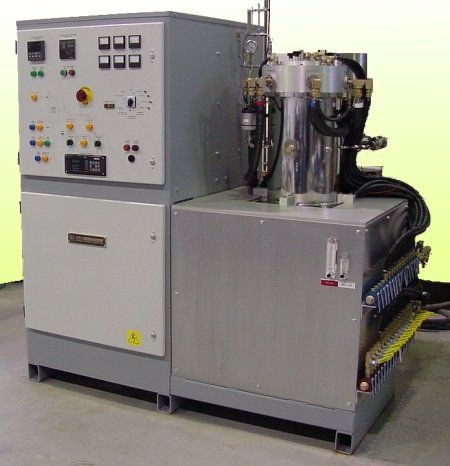

Chamber furnace T-8

vacuuminert gasgraphite

T-8 Top Loading Furnace Hot zone size of 8” diameter x 12” high (203 mm x 305 mm) or 8” diameter x 18” high (203mm x 457mm). Maximum temperature of 3000°C with Graphite or Tungsten hot zone. T-6 through T-12 feature removable power feed through ring to bring power into the hot zone. This makes for easier servicing and supports the heating elements. Work samples are placed on a hearth plate inside the hot zone. General Specifications: Hot zone size: 8” diameter x 12” high (203 mm x 305 mm) or 8” diameter x 18” high (203mm x 457mm). Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten, 3000°C max. Graphite, 3000°C max. +/- 10°C temperature gradient across zone Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
