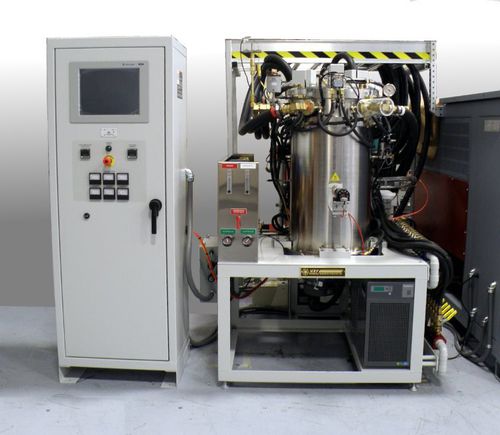

Chamber furnace T-12

vacuuminert gasgraphite

T-12 Top Loading Furnace Hot size size is 12” diameter x 18” high (305 mm x 457 mm) or 12” diameter x 24” high (305 mm x 610 mm). Maximum temperature of 3000°C with Graphite or Tungsten hot zone. T-6 through T-12 feature removable power feed through ring to bring power into the hot zone. This makes for easier servicing and supports the heating elements. Work samples are placed on a hearth plate inside the hot zone. General Specifications: Hot size size: 12” diameter x 18” high (305 mm x 457 mm) or 12” diameter x 24” high (305 mm x 610 mm). Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten, 3000°C max. Graphite, 3000°C max. +/- 10°C temperature gradient across zone Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
