Chamber furnace T-16

gasvacuuminert gas

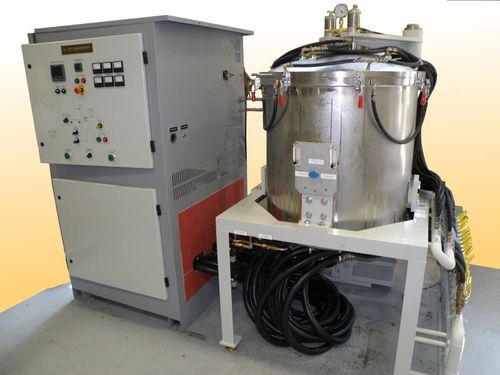

T-16 Top Loading Furnace Hot zone size is 16” diameter x 16” high (406 mm x 457 mm) or 16” diameter x 24” high (406 mm x 610 mm). Designed to accommodate larger diameter loads and an optional retort to allow safe removal of volatile process gasses, our T-16 through T-22 top loaders feature an air-operated access cover that lifts up and swings out of the way to make loading and unloading nearly effortless. With optional HMI software, sequencing can be automated, making these models well suited for batch production operation. General Specifications: Hot zone size: 16” diameter x 16” high (406 mm x 457 mm) or 16” diameter x 24” high (406 mm x 610 mm). Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten, 3000°C max. Graphite, 3000°C max. +/- 10°C temperature gradient across zone Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
