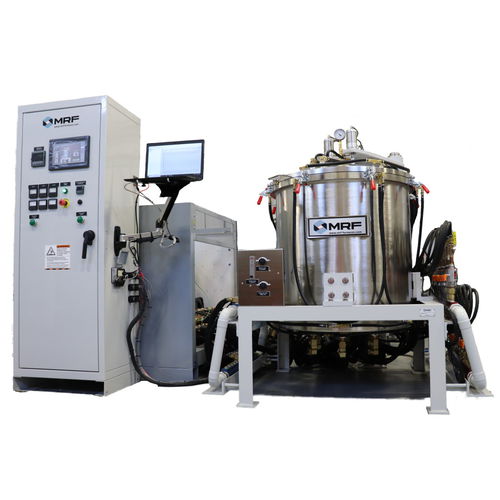

Graphitization oven T-20

chamberannealingsintering

Hot zone size grows to 20” diameter x 16” high (508 mm x 457 mm) or 20” diameter x 20” high (508 mm x 508mm). T-16 through T-22 feature air-operated access covers for easier loading and unloading. Work samples are placed on a hearth plate inside the hot zone. General Specifications: * Hot size size: 20” diameter x 16” high (508 mm x 457 mm) or 20” diameter x 20” high (508 mm x 508mm). * Materials & maximum temperatures: - Ceramic, 1700°C max. - Molybdenum, 1650°C max. - ungsten, 3000°C max. - Graphite, 3000°C max. * +/- 10°C temperature gradient across zone * Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
