Chamber furnace T-26vacuuminert gasgraphite
Add to favorites
Compare this product
Characteristics
- Configuration
- chamber
- Atmosphere
- vacuum, inert gas
- Other characteristics
- graphite
- Maximum temperature
1,650 °C, 1,700 °C, 3,000 °C
(3,002 °F, 3,092 °F, 5,432 °F)
Description

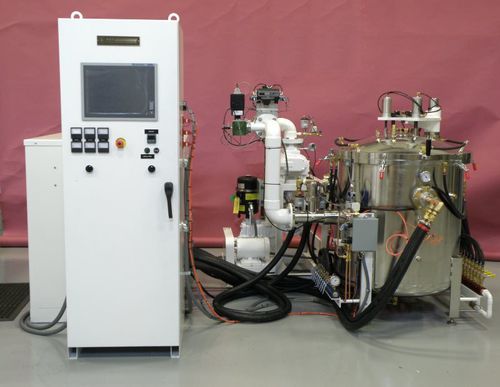

T-26 Top Loading Furnace
At this moment our largest diameter top loading furnace, with a hot zone size 26” diameter x 18” high (660 mm x 457 mm).
Like our other larger top loading furnaces, T-26 features an air-operated access covers for easier loading and unloading. Work samples are placed on a hearth plate inside the hot zone.
General Specifications:
Hot size size: 26” diameter x 18” high (660 mm x 457 mm).
Materials & maximum temperatures:
Ceramic, 1700°C max.
Molybdenum, 1650°C max.
Tungsten, 3000°C max.
Graphite, 3000°C max.
+/- 10°C temperature gradient across zone
Includes rough vacuum and inert gas system
Available with high vacuum systems, flammable gas systems and other options.
