Chamber furnace B-22

electricgasvacuum

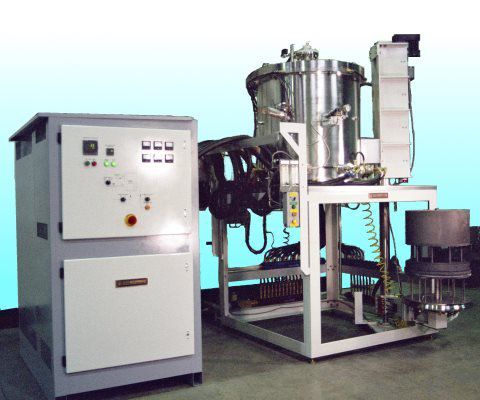

B-22 Bottom Loading Furnace Designed to accommodate larger diameter loads and/or the optional retort for safe removal of volatile process gasses, our B-22 is another variation of our bottom loading production furnaces. The heating area measures 22” diameter X 20” high (559 mm diameter X 508 mm high). Choose from a list of options to create the configuration to suit your process needs. Specifications: Hot zone size: 22” dia. X 20” high (559mm dia. X 508mm high) Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten, 3000°C max. Graphite, 3000°C max. +/- 10°C temperature gradient across zone Electric lift for loading and unloading Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options
