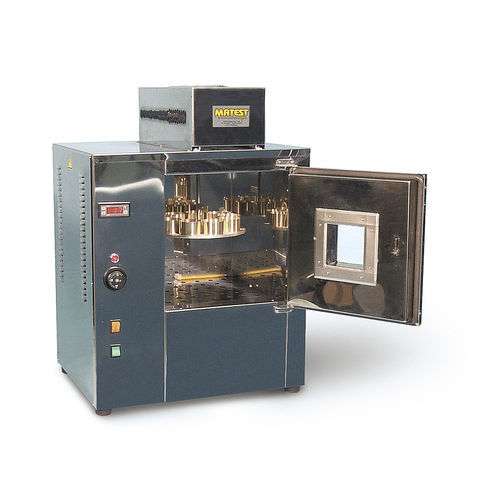

Chamber oven B064 KIT

electrichigh-temperature

THIN FILM AND LOSS ON HEATING DETERMINATION (TFOT) Internal chamber and external frame all made of stainless steel, double wall insulation with fiberglass, double door. Temperature control by digital thermoregulator. The oven is equipped of a dual safety thermostat to prevent accidental over-heatings. The plate rotates at 5-6 rpm. Supplied complete with glass control thermometer ASTM 13C, +155 to +170°C subd 0.5°C. The oven is supplied “without rotating shelf and accessories”, that must be ordered separately. Power supply: 230 V 1 ph 50 Hz 1500 W Internal dimensions: 330x330x330 mm Outside dimensions: 460x450x700 mm Weight: 40 kg THE OVEN MOD. B064 KIT CAN BE EQUIPPED IN TWO VERSIONS, WITH THE FOLLOWING ACCESSORIES: B064-01 KIT Rotating shelf complete with 9 containers diameter 55x35 mm for the “Determination of Loss on Heating” to: EN 13303 / ASTM D 6 / BS 2000 / NF T066-011 / AASHTO T47 / CNR N° 50 / NF T066-011 - AASHTO T47 Standards. B064-02 Rotating shelf, complete with 2 containers diameter 140x9.5 mm for the “Determination of Thin Film” to: EN 12607-2 / ASTM D1754 / AASHTO T149 / UNE 7110 Standards.
