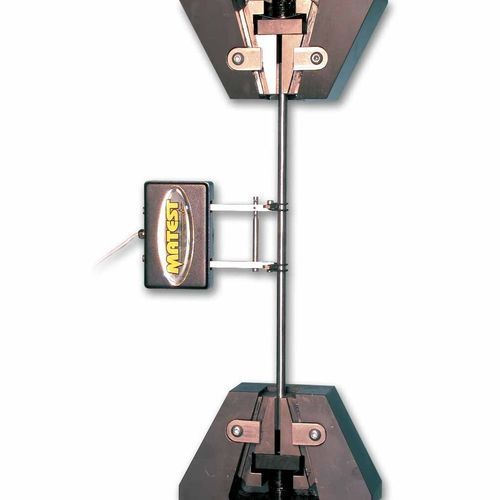

Tensile extensometer H0 series

This Electronic extensometers are used to measure the longitudinal deformations of the specimen when the machine is performing the test. They are suitable for all the Universal Automatic Tensile Testing Machine, from mod. H001A to mod. H001D. Measuring base 50 mm, deformation range +1 mm / -0.2 mm Maximum percent measurable deformation: +2% It gives the possibility to take the longitudinal deformations of the specimen during the tensile test. A graph load/deformation is obtained and from this graph the coefficient of elasticity together with the loads RP0.1 - RP0.2 - Rt1 can be identified even on materials that are not presenting a yield point that can be clearly identified. The appliance is delivered complete with connection cables. This instrument is directly applied on the sample through two coaxial telescopic hardened tubes by measuring the deformation/elongation of the strand up to failure. Supplied complete with electronic precision transducer, 50 mm stroke by 0.005 mm sensitivity. Measuring base: 600 mm It can be used only with the model H001BS and H003N Dimensions: 105x630 mm Weight: 1000 g
