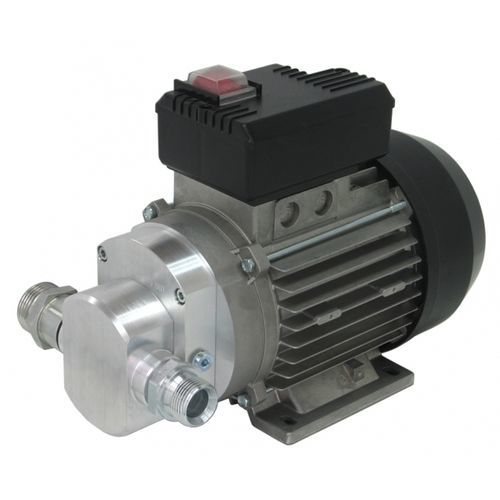

Oil pump EP 100

electricself-priminggear

self priming gear pump with 3 m mains cable for mains connection, integrated by-pass pressure regulator and protected on/off switch, for engine, gearbox and hydraulic oils of low to medium viscosity, not suitable for high resistance and long oil promotion distances, offers moderate pressure perfomance at moderate flow rate for fluids Hazard Class A3 with a flash point higher than 55° C threads: R3/4" (outlet) / R1" (inlet) Operating advice: The self-priming electrig gear-wheel pumps EP are designed to transfer and dispense oil. An integrated bypass-valve limits the max. oil pressure. The pumps feature a protected switch and must be shut off after operation. Do not let the pumps run more than 5 minutes in by-pass mode against the closed dispense nozzle. If required, the pump can be upgraded with a pressure relieve device (Art.-Nr. 34 336 97). EP 100 and EP 300 are suitable for use with engine, gear and hydraulic oils from low to moderate viscosity. They are not supposed to be used with hose reels and/or set-ups of long oil promotion distances.
